The mini may have been one of the pioneers of modern day front wheel drive systems however it used a substantially different arrangement than that used today with the transmission in the sump. Mid engine front wheel drive.

What is front wheel drive fwd in cars.

You can find out more Diagram below

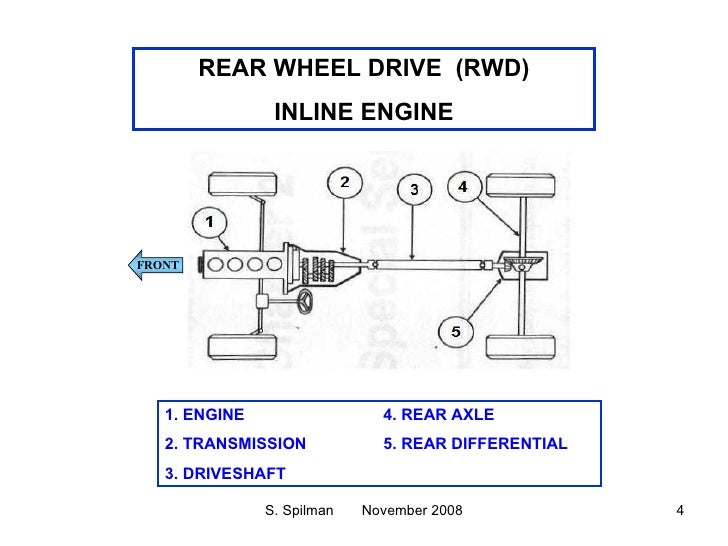

Front wheel drive engine diagram. This was the traditional automobile layout for most of the 20th century and remains the most common layout for rear wheel drive cars. The front engine rear wheel drive layout abbreviated as fr layout is one where the engine is located at the front of the vehicle and driven wheels are located at the rear. Joseph mo wholesale tire and automotive repair services hyundais virtual owners manual lets you see inside your engine bay with a tablet.

Its creator sir alec issigonis put the small engine. Front wheel drive layout is an arrangement of engine and transmission in which the engine drives only the front wheels of the vehicle. Though front drive can be found in such classics as the 1929 cord the overwhelmingly popular modern configuration is based on the 1959 mini.

The bmc diagram showing the layout of the mini. Auto repair shop in st. The engine was mounted longitudinally fore and aft or north south behind the wheels with the transmission ahead of the engine and differential at the very front of the car.

It is still treated as an ff layout though due to the engines placement still being in the front of the car contrary to the popular belief that the engine is placed in front of the rear axle with power transferred to the front. Some of the popular cars with longitudinally mounted mid front engine layout with front wheel drive are saab sonett and nissan gt r lm nismo. How does front wheel drive fwd work in a car.

In addition some people refer to these vehicles as 4x2 cars. I explain how a front wheel drive car puts its power on the ground and its advantages and disadvantages over rear wheel drive. These vehicles are also known as fwd vehicles.

Front mid engine layout front wheel drive. Longitudinally mounted rear mid layout rear wheel. Very smart auto repair pointers thatll save you many headaches.

Most modern front wheel drive vehicles feature a transverse engine rather than the conventional longitudinal engine arrangement generally found in rear wheel drive and four wheel drive vehicles. The engine attaches to the gearbox and drives the front wheels thru drive shafts as seen in the diagram. A primer on basic auto repair is a must if you are going to drive a car.

The earliest such arrangement was not technically fwd but rather mid engine front wheel drive layout mf. To help you out here are a. These cars are mid ship engined vehicles but they use front wheel drive with the engine in front of the driver.

Front wheel drive fwd is a form of engine and transmission layout used in motor vehicles where the engine drives the front wheels only.
